2-Post Open Frame Racks

SRK Security Series Open Frame Racks are designed for use in telecom rooms, small wiring closets and data centers for managing network equipment. These simple but tough racks can hold a variety of items designed to be rack-mounted, including shelves, patch panels, cable management trays, and network switches. The 2-Post version satisfies the basic functional requirements for structuring cable and can be ganged with other 2-Post Open Frame Racks or 4-Post Open Frame Racks to expand existing systems.

Features.

  • Tapped 12-24 numbered rack spaces - front and rear.
  • Channels constructed from heavy duty aluminum extrusion.
  • Heavy duty base includes holes for securing to floor.
  • Ships flat to save space.
  • Pack of extra hardware included.
  • Vertical cable managers and other accessories available.
View Spec Sheet

Paint/Finish.

Textured black powder.

Static Load Rating.

800 lbs. [363 kg.]

Industry Standards.

EIA 310-D

UL Listed

Part Numbers.

Ships flat. Assembly required. Package include all hardware and assembly instructions.

Part Number
Rack Units
Overall Dimensions H x W x D [in] (mm)
CC38-2CH-514-A
38U
[71.46” x 20.23” x 29.53”]
(1815 mm x 514 mm x 750 mm)
CC45-2CH-514-A
45U
[83.71” x 20.23” x 29.53”[
(2126 mm x 514 mm x 750 mm)

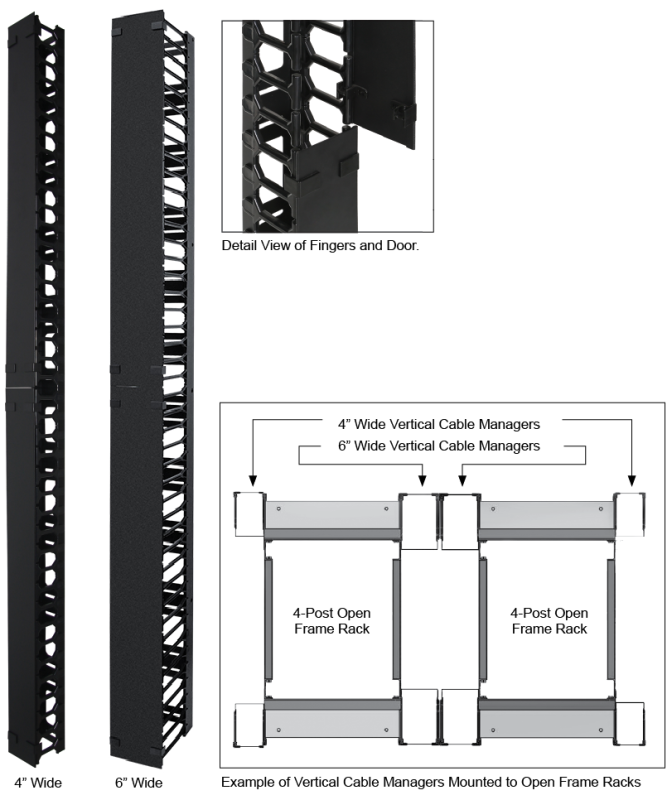

Vertical Cable Manager Options.

Available in 2 sizes, 4” and 6” fingers, these cable managers mount to the sides of 2-Post or 4-Post open frame racks to assist with cable management.
4” Finger Part Number
Rack Units
Overall Dimensions H x W [in] (mm)
SRE04-36-A
36U
[63.00” x 3.20”]
(1600 mm x 81 mm)
SRE04-44-A
44U
[77.00” x 3.20”]
(1956 mm x 81 mm)
6” Finger Part Number
Rack Units
Overall Dimensions H x W [in] (mm)
SRE05-36-A
36U
[63.00” x 5.50”]
(1600 mm x 141 mm)
SRE05-44-A
44U
[77.00” x 5.50”]
(1956 mm x 141 mm)
Request Pricing
