Electronic Racks
SRK Electronic Rack Series is an extremely heavy-duty product line capable of handling 3,500 lbs. It is made to organize and securely store rack mountable electronics and other items such as test and measurement equipment. With adjustable mounting rails, SRK Electronic Racks provide flexibility to change the rail depth in 10 mm increments. Additional space in the rear allows for cables to be run vertically without disrupting airflow. The doors are removable for easy access to the inner rack. The entire product will ship as configured so there is no assembly required.
Features.
- Available in four heights; 36U, 40U, 42U, and 45U.
- 19” EIA mounting in a slim overall width of 22.50”.
- Two depths (without doors) available; 31.50” and 36.80”.
- Locking front and rear doors.

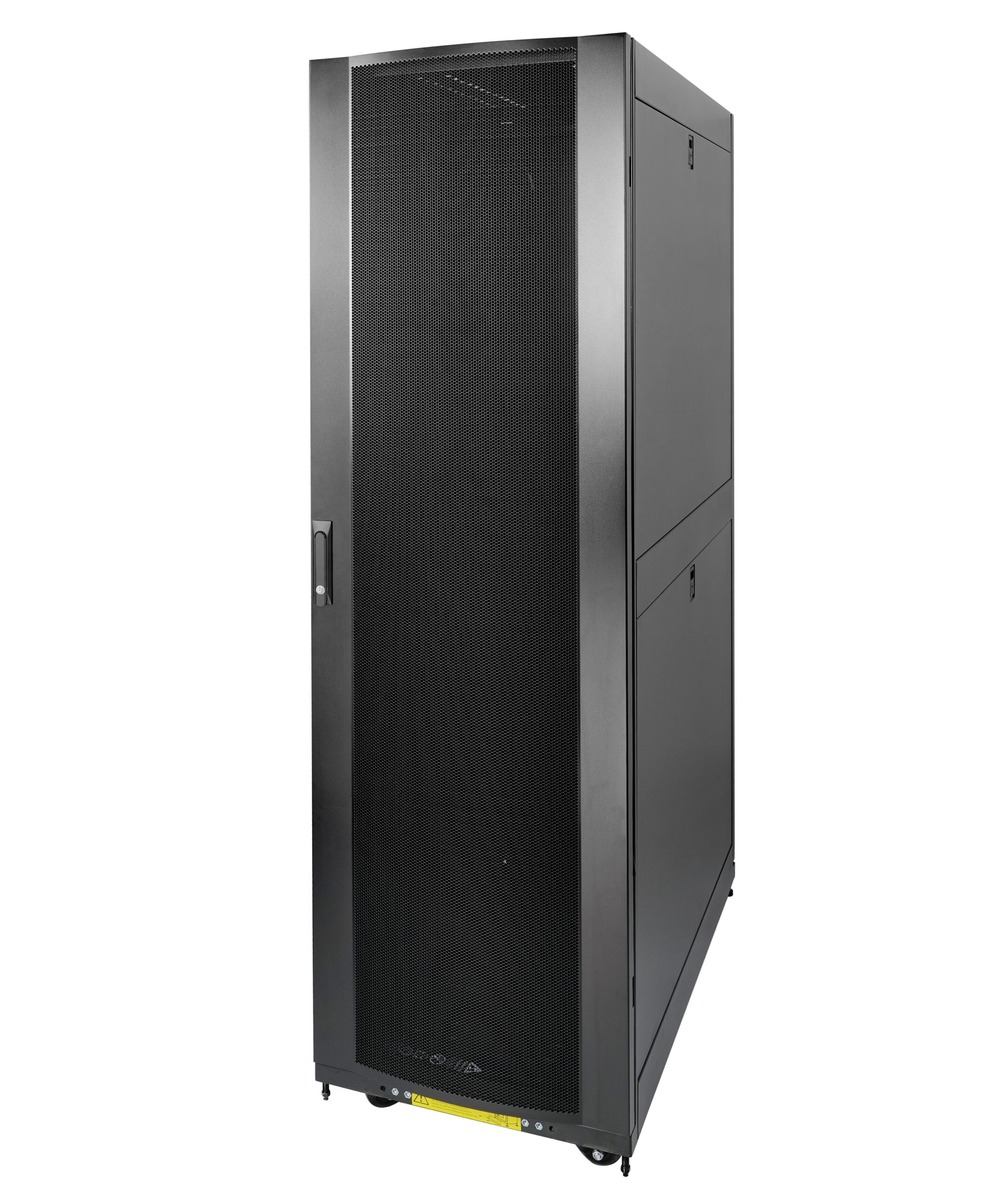

- Front door with perforation for airflow.
- Plated Tapped mounting rails are adjustable front to rear.
- Solid bottom panel with knockouts for access.
- Grounding kit and baying hardware included.
- Levelers and heavy-duty casters are standard.
- Full range of optional accessories.
Paint/Finish.
Textured black powder.
Static Load Rating.
3500 lbs. [1586 kg.]
Dynamic Load Rating.
2500 lbs. [1134 kg.]
Industry Standards.
Adjustable Mounting Rails.
Fully adjustable front to rear.
Numbers assist with alignment.
Integrated Cable Management.
Two vertical cable managers are included with each cabinet.
The top panel includes integrated brush cable pass through points.

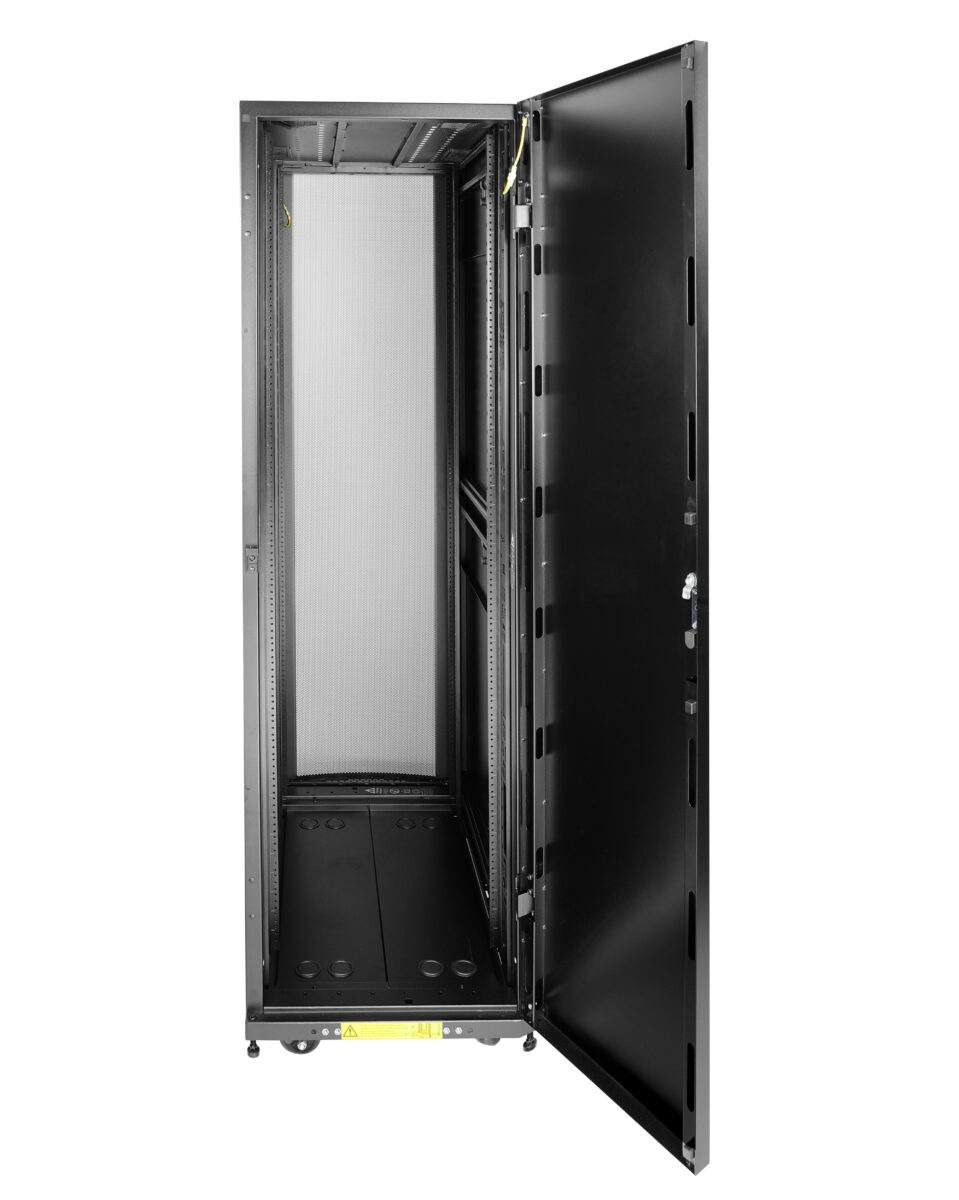

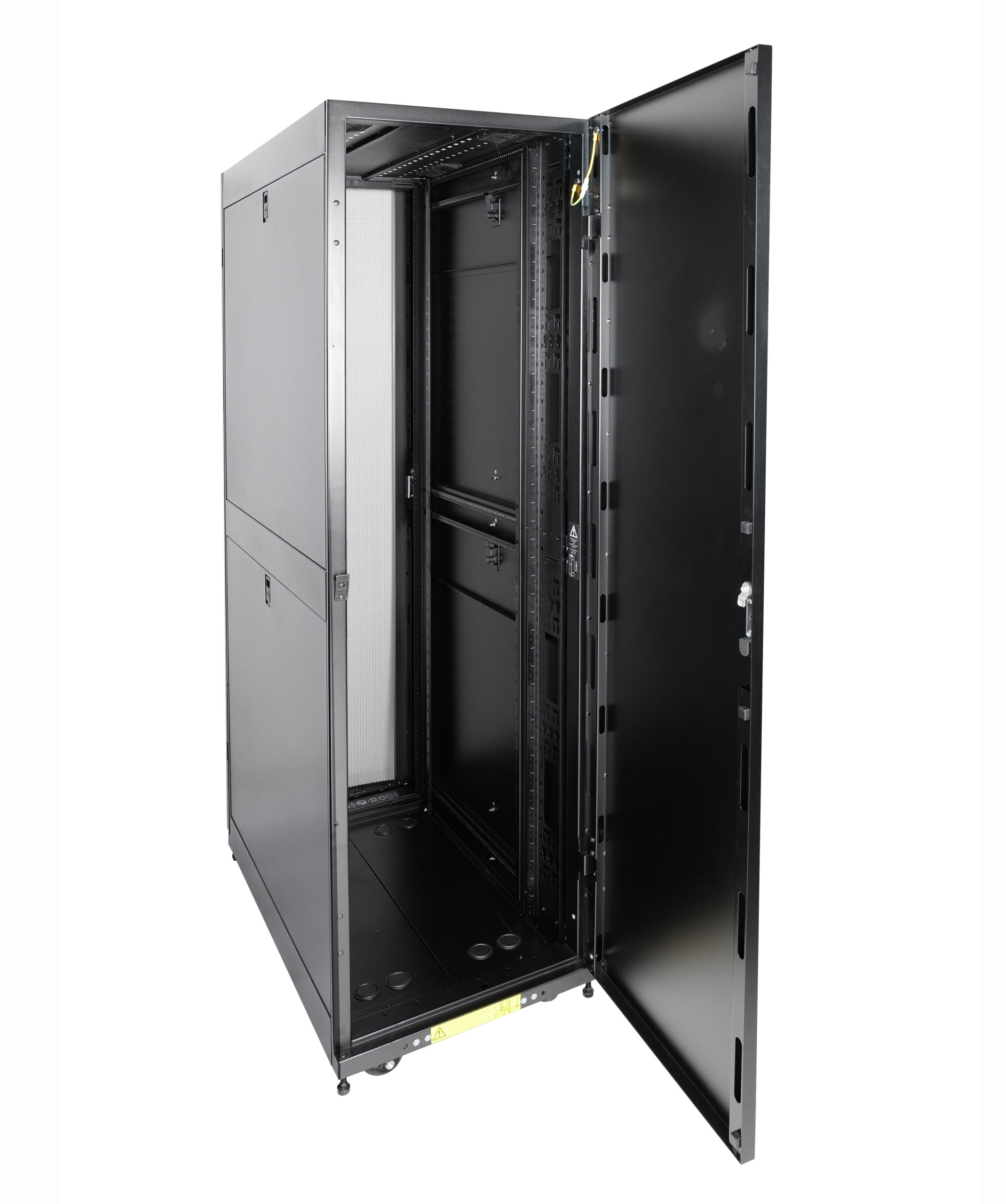

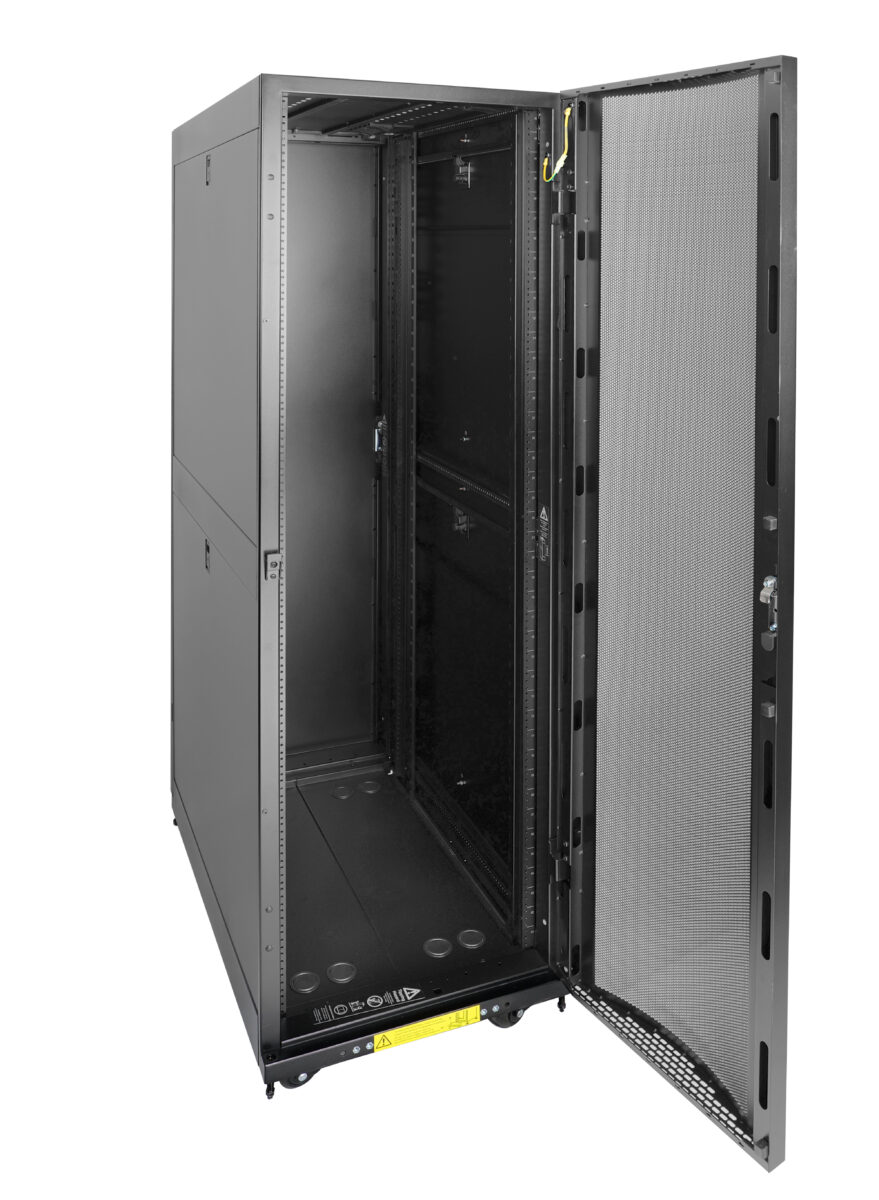

Lift Off Doors.
Quick release. Easy on and off.
Field reversible. 120° of rotation.
Ground wire and locks included.
Part Numbers.
These cabinets come fully assembled on a pallet and include: Frame, Two Pair Plated Rails with Tapped Holes, Solid Side Panels, Perforated Door on Front, Solid Door on Rear, Top with Brush Cable Pass Through Slots, Two Vertical Lacing Panels, Bus Bar, Solid Bottom Panel, Casters, Levelers, and Mounting Hardware.
31.50” Deep Frame Part Number |
Rack Units |
Overall Dimensions With Doors H x W x D* [in] (mm) |
|---|---|---|
21S36-2231CS-MMA
|
36U
|
[69.03” x 22.50” x 35.16”] (1753 mm x 572 mm x 893 mm) |
21S40-2231CS-MMA
|
40U
|
[76.03” x 22.50” x 35.16”] (1931 mm x 572 mm x 893 mm) |
21S42-2231CS-MMA
|
[79.53” x 22.50” x 35.16”] (2020 mm x 572 mm x 893 mm) | |
21S45-2231CS-MMA
|
45U
|
[84.78” x 22.50” x 35.16”] (2153 mm x 572 mm x 893 mm) |
36.80” Deep Frame Part Number |
Rack Units |
Overall Dimensions With Doors H x W x D* [in] (mm) |
|---|---|---|
21S36-2236CS-MMA
|
36U
|
[69.03” x 22.50” x 40.48”] (1753 mm x 572 mm x 1028 mm) |
21S40-2236CS-MMA
|
40U
|
[76.03” x 22.50” x 40.48”] (1931 mm x 572 mm x 1028 mm) |
21S42-2236CS-MMA
|
[79.53” x 22.50” x 40.48”] (2020 mm x 572 mm x 1028 mm) | |
21S45-2236CS-MMA
|
45U
|
[84.78” x 22.50” x 40.48”] (2153 mm x 572 mm x 1028 mm)) |
Technical Specifications.
