Fixed Wall Mount Cabinets

The SRK Wall-Mount Series Cabinets offer reliability, value, and versatility in organizing and securing your 19” standard rack mount servers and networking equipment. These fixed style wall mounted cabinets are a cost-effective solution solving the everyday problems technicians have while installing and managing the immense amount of cabling that is common with data and telecommunication equipment. They come assembled with rails that are field adjustable – tapped 12-24 or square, multiple cable management points, a built-in area for a power strip, brushed cable entry, and laser knockouts for adding fans or additional cable entry, lockable side panels, and a locking glass door.

Features

Available in multiple heights including: 2 ft, 3 ft, and 4 ft.
Three depths: 8” (200 mm), 18” (450 mm), and 26” (650 mm).
Removable side panels make for easy moves, adds, and changes (MAC’s).
Easily integrates with accessories such as power, cooling, and cable management.
The back panel is removable for easy installation.
Window door comes standard and is field reversible for left or right swing.
Lockable side panels for added security.
Square or 12-24 tapped rails - adjustable front to rear.

Paint/Finish.

Textured black powder

Load Rating.

Varies per size and is dependant on secure mounting into proper tructure.

Industry Standards.

EIA 310-D

Sizes Available.

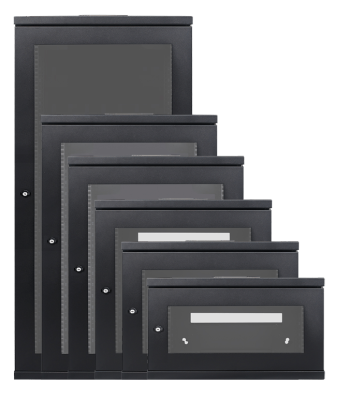

Six Heights: 6U, 9U, 12U, 15U, 18U, 27U

Three Depths: 8” (200 mm), 18” (450 mm), and 26” (650 mm)

Mounting Rails.

Adjustable front to rear.

Field reversible square or 12-24 tapped hole.

Interated Cabel/Airflow Management.

The top has integrated cable entry/exit points and venting provisions for the optional fan kit.

Lift Off Doors.

Quick release. Easy on and off.

Field reversible. 140° of rotation. Lock included.

Part Numbers.

These cabinets come fully assembled and include: frame, window front door, side panels, two pair of reversible mounting rails, and back panel.

8” Deep (200 mm) Part Number	Rack Units	Overall Dimensions H x W x D* [in] (mm)	Maximum Usable Depth [in] (mm)	Weight Capacity [lb] (kg)
BF06-620-B1A	6U	[13.78” x 23.32” x 7.87”] (350 mm x 600 mm x 200 mm)	[9.5”] (241 mm)	[135 lb] (61 kg)
BF09-620-B1A	9U	[19.00” x 23.32” x 7.87”] (480 mm x 600 mm x 200 mm)	[9.5”] (241 mm)	[135 lb] (61 kg)
BF12-620-B1A	12U [3 ft]	[24.38” x 23.32” x 7.87”] (620 mm x 600 mm x 200 mm)	[9.5”] (241 mm)	[250 lb] (113 kg)
BF15-620-B1A	15U	[29.68” x 23.32” x 7.87”] (750 mm x 600 mm x 200 mm)	[9.5”] (241 mm)	[250 lb] (113 kg)
BF18-620-B1A	18U [4 ft]	[34.82” x 23.32” x 7.87”] (885 mm x 600 mm x 200 mm)	[9.5”] (241 mm)	[300 lb] (136 kg)
BF27-620-B1A	27U [5 ft]	[50.50” x 23.32” x 7.87”] (1282 mm x 600 mm x 200 mm)	[9.5”] (241 mm)	[400 lb] (181 kg)

18” Deep (450 mm) Part Number	Rack Units	Overall Dimensions H x W x D* [in] (mm)	Maximum Usable Depth [in] (mm)	Weight Capacity [lb] (kg)
BF06-645-B1A	6U	[13.78” x 23.32” x 17.71”] (350 mm x 600 mm x 450 mm)	[9.5”] (241 mm)	[135 lb] (61 kg)
BF09-645-B1A	9U	[19.00” x 23.32” x 17.71”] (480 mm x 600 mm x 450 mm)	[9.5”] (241 mm)	[135 lb] (61 kg)
BF12-645-B1A	12U [3 ft]	[24.38” x 23.32” x 17.71”] (620 mm x 600 mm x 450 mm)	[9.5”] (241 mm)	[250 lb] (113 kg)
BF15-645-B1A	15U	[29.68” x 23.32” x 17.71”] (750 mm x 600 mm x 450 mm)	[9.5”] (241 mm)	[250 lb] (113 kg)
BF18-645-B1A	18U [4 ft]	[34.82” x 23.32” x 17.71”] (885 mm x 600 mm x 450 mm)	[9.5”] (241 mm)	[300 lb] (136 kg)
BF27-645-B1A	27U [5 ft]	[50.50” x 23.32” x 17.71”] (1282 mm x 600 mm x 450 mm)	[9.5”] (241 mm)	[400 lb] (181 kg)

26” Deep (650 mm) Part Number	Rack Units	Overall Dimensions H x W x D* [in] (mm)	Maximum Usable Depth [in] (mm)	Weight Capacity [lb] (kg)
BF06-665-B1A	6U	[13.78” x 23.32” x 25.59”] (350 mm x 600 mm x 650 mm)	[9.5”] (241 mm)	[135 lb] (61 kg)
BF09-665-B1A	9U	[19.00” x 23.32” x 25.59”] (480 mm x 600 mm x 650 mm)	[9.5”] (241 mm)	[135 lb] (61 kg)
BF12-665-B1A	12U [3 ft]	[24.38” x 23.32” x 25.59”] (620 mm x 600 mm x 650 mm)	[9.5”] (241 mm)	[250 lb] (113 kg)
BF15-665-B1A	15U	[29.68” x 23.32” x 25.59”] (750 mm x 600 mm x 650 mm)	[9.5”] (241 mm)	[250 lb] (113 kg)
BF18-665-B1A	18U [4 ft]	[34.82” x 23.32” x 25.59”] (885 mm x 600 mm x 650 mm)	[9.5”] (241 mm)	[300 lb] (136 kg)
BF27-665-B1A	27U [5 ft]	[50.50” x 23.32” x 25.59”] (1282 mm x 600 mm x 650 mm)	[9.5”] (241 mm)	[400 lb] (181 kg)

*Depth includes front door.

Optional Fan Part Number	Compatible With
LW-FAN-4IN-CBK	8” Deep (200 mm) Cabinet
SCA-UCST-03-CBK	22” Deep (450 mm) Cabinet 30” Deep (650 mm) Cabinet

Technical Specifications.

While every precaution has been taken to ensure accuracy and completeness, SharkRack assumes no responsibility and disclaims all liability for damages resulting from use of this information or for any errors or omissions.
